For installers

Preliminary electrical wiring

From the same roof as the estimate: strings per inverter input, cables routed round chimneys and skylights, the string voltages on the coldest and hottest design day, and a stringing report for the electrician.

Electrical schematics

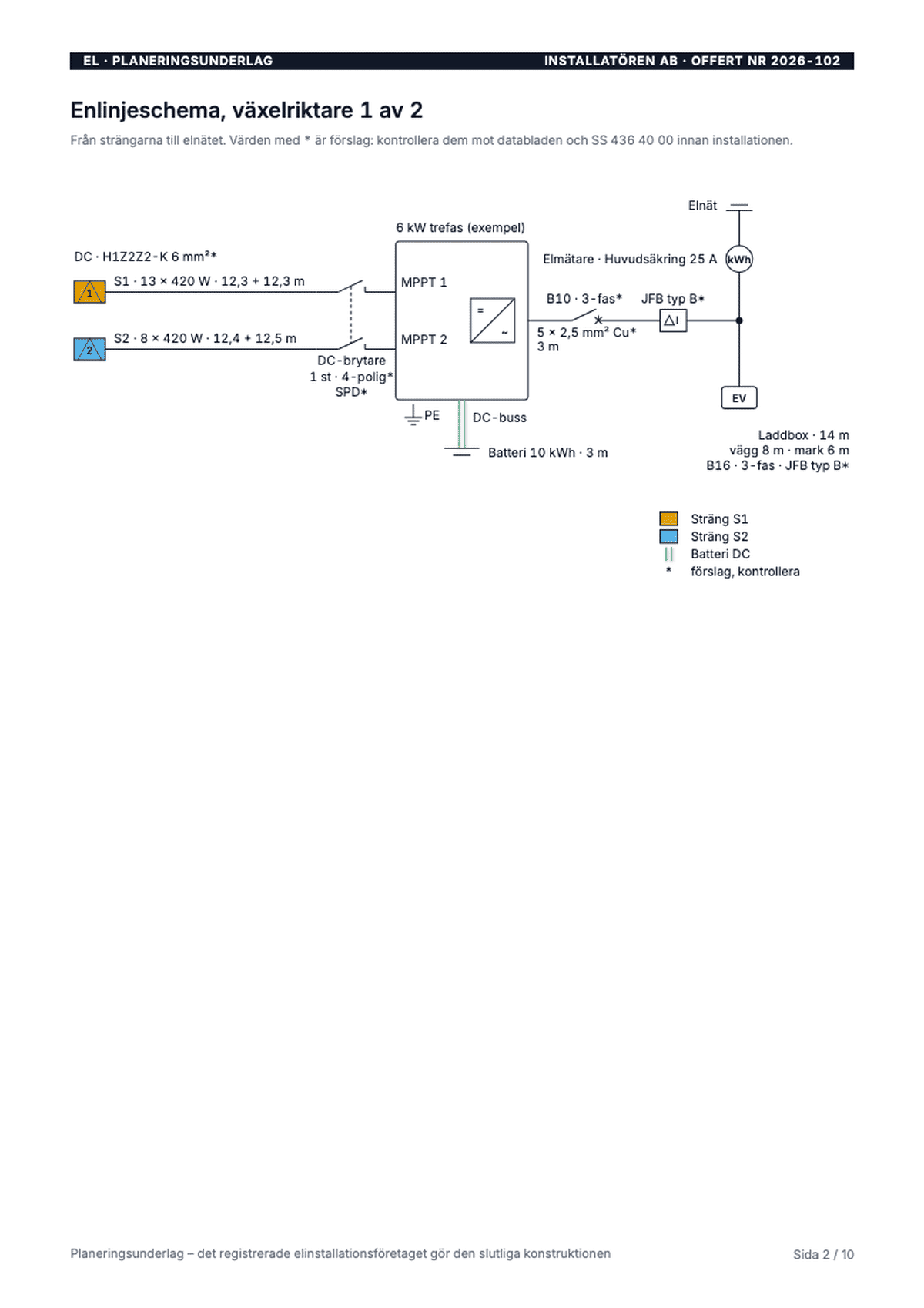

What the electrician gets from the same roof: a single-line diagram per inverter, strings that follow the shade and a voltage check in cold and heat.

  • A single-line diagram per inverter

    Strings and panel counts, Voc and Isc at the design temperatures, protection, cable types and lengths, battery, EV charger and the grid.

  • Strings that follow the shade

    The plan uses the sun, the trees and the obstacles on the roof to group the panels and to suggest how many strings to use.

  • A voltage check in cold and heat

    The string voltages on the coldest and the hottest design day, checked against the inverter's limits.

  • A stringing report PDF for the electrician

    A summary, roof sketches with the series order, the conditions, the equipment and the cables.

Example
The Wiring pane: three strings on the roof and the voltage check on a cold morning at −25 °C.

The plan is made from the same roof as the estimate. Strings are grouped by shade so one shaded panel does not pull down a whole string, cables are routed round chimneys and skylights and the series order is the one with the least cable. The design temperatures follow the latitude: −25 °C south of 60° N, −30 °C to 64° N, −35 °C above; the hot check is at 70 °C, flush mount. The stringing report lists each string's panels, Voc and Isc at both temperatures, cable lengths and the inverter's limits.

Data: sample house 2, Large house + battery + EV

Example data. A planning estimate: the registered electrical installation company makes the final design.

Strings per inverter input

The plan starts from each roof face that has panels: the rows from the eave up, the panels along the eave, the face's tilt and azimuth. The inverter is the one in the selected installer's package; without one, a reference profile sized on the array's STC watts is used, and when the layout does not fill its inputs the plan steps to the next larger profile, at most 3 times, and records each step. An installer's inverter is never swapped. The result is a set of strings per MPPT input with their panel count, voltage and current, checked against the inverter's start voltage, MPPT window, maximum DC voltage and input currents.

Example
The Wiring pane: three strings on the roof and the voltage check on a cold morning at −25 °C.

Strings that follow the shade

With the sun, the trees and the obstacles of the roof as an environment, the panels are grouped by shade over the hourly tables of the year, so one shaded panel does not pull down a whole string. The plan then reports the electrical yield of the chosen string count against the ideal and the plain geometric grouping, one row of options per possible string count, and the mismatch loss of each string from the model instead of a rule table. Micro-inverter and per-panel MPPT plans have no string count to choose: every panel has its own MPPT.

Example
The Radiance view: the roof coloured by sunlight, with each panel's production per day.

Cables round obstacles, least cable in series

Each face's chimneys, skylights and other obstacles are projected onto the roof plane, and the jumpers between panels and the home-run legs down the slope are routed round them with 0.1 m clearance, so the metres in the table are the routed ones; a detour longer than the module leads adds its extension cable. Within a string the series order and the two end panels are the ones with the least cable, and the plan says how many metres that saves against the plain row order. One face of 110 panels with 10 obstacles plans in about 30 ms.

Design temperatures by latitude

The cold check uses the open-circuit voltage at a design minimum that follows the house's latitude: −25 °C south of 60° N, −30 °C from 60° to 64° N and −35 °C north of 64° N. The hot check uses the maximum-power voltage at a cell temperature of 70 °C for a flush roof mount (65 °C for a tilted one). Both are compared with the inverter's limits, and the report shows the June and December voltage frames.

−25 °C below 60° N −30 °C 60–64° N −35 °C from 64° N Hot check: 70 °C

The stringing report and the single-line diagram

The stringing report PDF lists every number of the wiring pane: each string's panels in series order with the roof diagram, Voc and Isc at both design temperatures, cable lengths, the inverter's limits, the assumptions, the standards and the disclaimer. It is rendered once per plan version and cached; a new run or a scene edit makes a new version. The wiring template adds a single-line diagram per inverter with strings and panel counts, protection, cable types and lengths, battery, EV charger and the grid, and applies one DC switch-disconnector per inverter that isolates every used MPPT input at once, per SS 436 40 00 and IEC 60364-7-712.

All of this is a planning estimate. The registered electrical installation company makes the final design, selects the protection and cables and is responsible for the installation; the report's protection values are marked as suggestions.

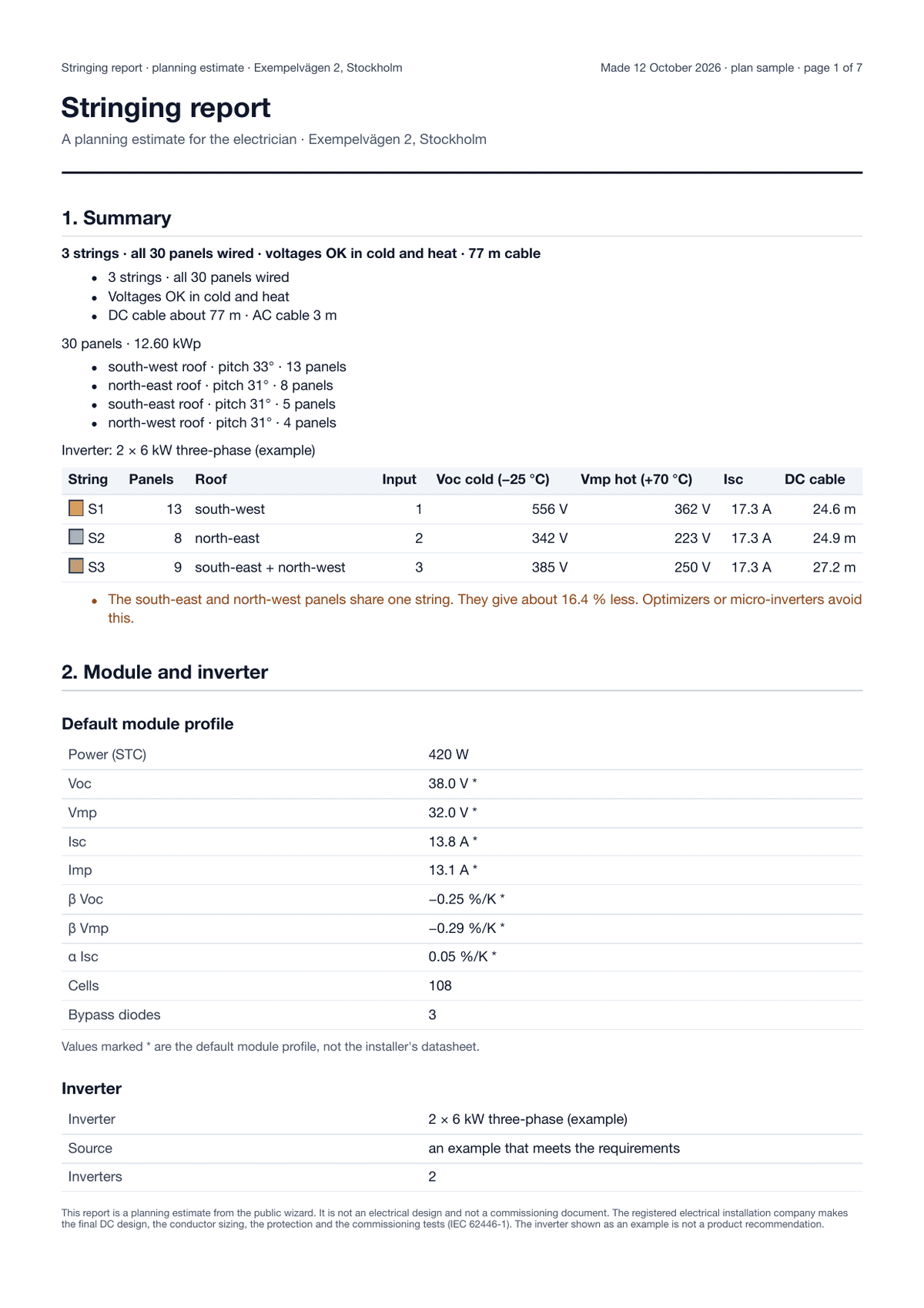

Page 1 of the stringing report: the strings per inverter input and the voltage checks.

In numbers

Design minimum
−25 °C south of 60° N, −30 °C to 64° N, −35 °C north of 64° N
Design maximum
70 °C flush mount, 65 °C tilted
Obstacle clearance
0.1 m round each footprint
Planning time
About 30 ms for 110 panels and 10 obstacles on one face
Inverter fallback
A reference profile, stepped up at most 3 times
DC switch rule
One switch-disconnector per inverter, SS 436 40 00 / IEC 60364-7-712
Status
Planning estimate; the registered electrical installation company makes the final design
